Selecting High-Quality Hydraulic Tipping Cylinders for Agricultural Trailers: An Engineering & Buyer’s Guide

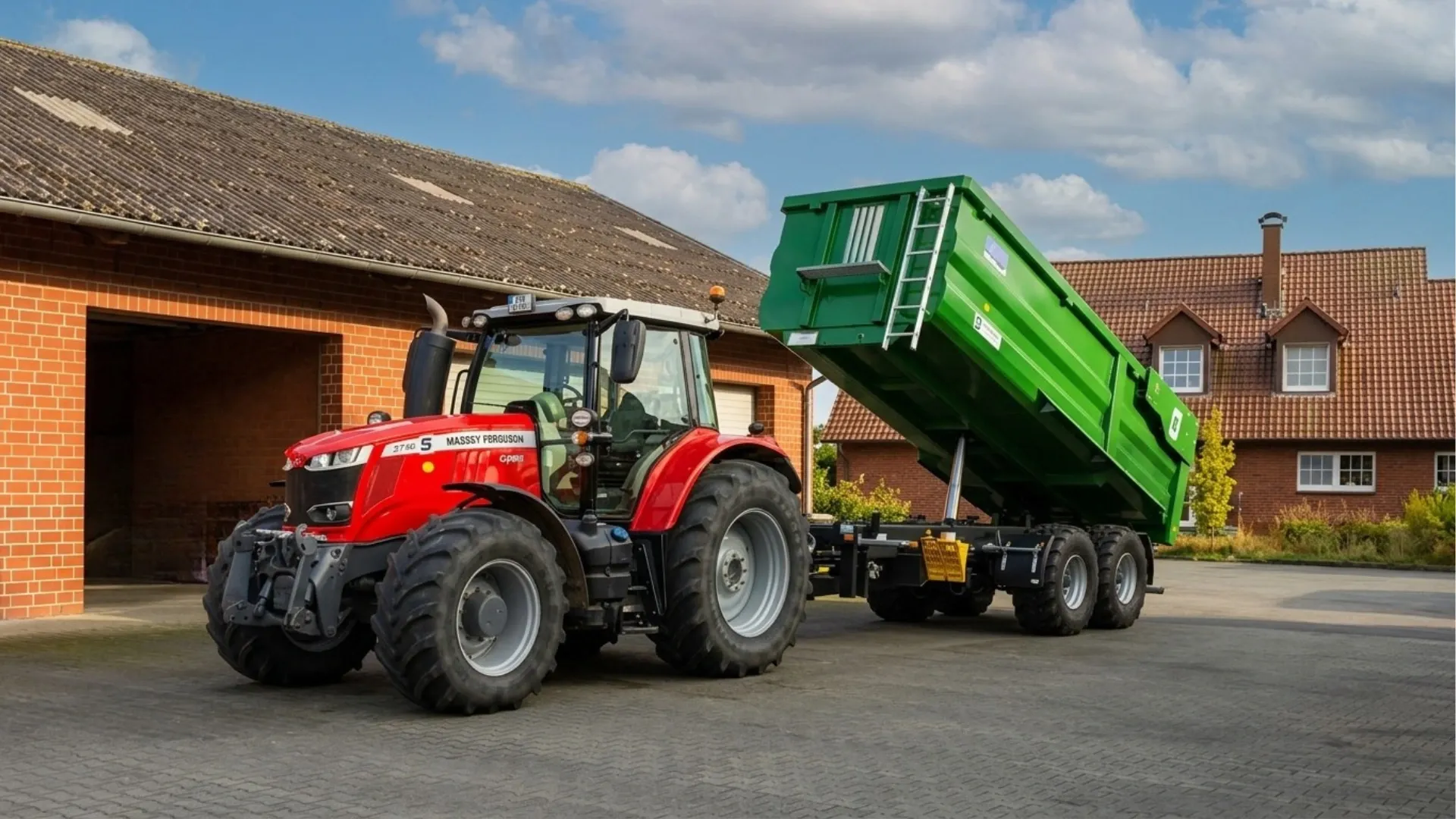

Agricultural tipping trailers operate under some of the most demanding environmental and mechanical conditions in the heavy-duty equipment sector. Unlike standard highway transport vehicles, agricultural tippers face severe side-loads during unloading on uneven terrain, continuous vibration, cyclic exposure to corrosive fertilizers, moisture, and extreme thermal fluctuations.

Achieving maximum operational safety and preventing field downtime requires more than just picking a cylinder—it requires a fully integrated hydraulic ecosystem. When buying high-quality hydraulic tipping cylinders online, engineers, OEM trailer builders, and fleet managers must evaluate structural metallurgy, surface treatments, seal longevity, and complete system matching.

1. Front-End vs. Underbody Tipping Cylinders: Which Architecture Fits Your Application?

Choosing between Front-End Tipping Cylinders and Underbody Tipping Cylinders dictates the mechanical leverage, hydraulic pressure requirements, and overall stability of the agricultural trailer.

Technical Metric, Front-End Tipping Cylinders, Underbody Tipping Cylinders

Primary Application, Medium-to-heavy rear-dump agricultural trailers., Three-way tipping trailers & compact rear-tippers.

Mechanical Advantage, Maximum leverage (pivot point farthest from trailer hinge)., Lower initial leverage; requires higher pressure capability.

Stroke Configuration, Long total stroke split over multiple telescopic stages., Compact multi-stage design fitted underneath chassis.

Bending Resistance, Exceptional column stability when fitted with protective covers., Requires heavy-duty trunnions/gimbals for multi-axis flex.

A. Front-End Telescopic Cylinders

Front-end cylinders are ideal for high-capacity silage, grain, and root-crop trailers. By applying lifting force at the front bulkhead, they lower the required system pressure needed to raise heavy loads. Premium front-end cylinders utilize high-yield seamless steel tubing and hard-chrome-plated stages to resist bending under off-center loads.

B. Underbody Telescopic Cylinders

Underbody cylinders excel in multi-directional tipping applications (left, right, and rear dump). Because they are mounted directly beneath the trailer box, they handle high concentrated loads. Top-tier underbody cylinders utilize precision-engineered trunnion mounts and cradles to ensure smooth rotation without binding.

2. Engineering Criteria: What Makes a High-Quality Tipping Cylinder?

When purchasing tipping cylinders online or specifying OEM hardware, ensure the technical specifications meet these industry standards:

1. Cold-Drawn Seamless Steel Tubing (St52-3 / E355): Ensures high yield strength, superior column rigidity, and resistance to burst pressures during shock loading.
2. Hard Chrome Plating & Surface Finish: Cylinder stages should feature hard-chrome plating (minimum 20–30 µm thickness) with high corrosion resistance (meeting ISO 9227 salt spray standards) to withstand outdoor exposure.
3. Advanced Sealing Technology: Multi-lip polyurethane (PU) wipers and primary seals rated for wide thermal operating windows (-30°C to +70°C) prevent contamination and internal pressure leaks.
4. Solid Stop Rings: High-spec cylinders feature solid CNC-machined stop rings rather than snap rings, providing maximum mechanical resistance at full stage extension.

3. Sizing the Complete Hydraulic Circuit: Gear Pumps, Valves, and Accessories

A tipping cylinder is only as effective as the hydraulic system supplying it. For optimal tipping speed, precise control, and safety, the entire system must be harmonized with matching components:

• Hydraulic Gear Pumps: High-pressure cast-iron body gear pumps deliver reliable volumetric efficiency and sustain operating pressures up to 250 bar, even at low tractor PTO speeds.

• Directional Control Valves (DCV): Proportional control valves ensure smooth extension, holding, and lowering speeds while integrating primary pressure relief protection.

• Knock-Off Valves: Crucial for system safety, a mechanical or pneumatic knock-off valve automatically cuts off oil flow once the maximum tipping angle is reached, protecting the cylinder from over-extension hydraulic shocks.

• Hydraulic Oil Tanks: Proper tank sizing (steel or aluminum) ensures sufficient oil volume and thermal dissipation during repeated tipping cycles.

• Body Locks: Automatic or pneumatic body locks secure the empty bed tightly to the trailer frame, preventing chassis chatter and wear on cylinder mounting points during road transport.

4. Where to Buy High-Quality Hydraulic Tipping Cylinders

When sourcing tipping cylinders and hydraulic hardware online for replacement or OEM manufacturing, purchase directly from certified manufacturers with dedicated technical support:

1. Direct Manufacturer (Hidromas): Sourcing directly from global manufacturers like Hidromas guarantees access to certified OEM quality, CAD technical drawings, custom stroke/mounting options, and complete system packages (cylinders, gear pumps, DCVs, tanks, and valves).
2. Authorized Regional Mobile Hydraulics Distributors: Useful for quick-ship standard replacement cylinders and regional service parts.

Why Choose Hidromas for Your Agricultural Tipper Hydraulics?

At Hidromas, we engineer and manufacture complete hydraulic solutions tailored for agricultural and commercial transport applications. Our product line includes:

• Telescopic Tipping Cylinders: Heavy-duty Front-End and Underbody configurations.
• Hydraulic Gear Pumps: Built for high pressure and continuous performance.
• Directional Control Valves (DCV) & Knock-off Valves: Engineered for safety and smooth control.
• Custom Oil Tanks & Body Locks: Complete accessory hardware for full trailer builds.
• Custom OEM Solutions: Tailored cylinder stroke, mounting, and porting to fit your exact trailer dimensions.

Looking for technical guidance or a custom quote?

Visit contact page or knowledge-center page to explore our technical catalogs or contact our engineering team to spec the perfect hydraulic circuit for your agricultural machinery.
